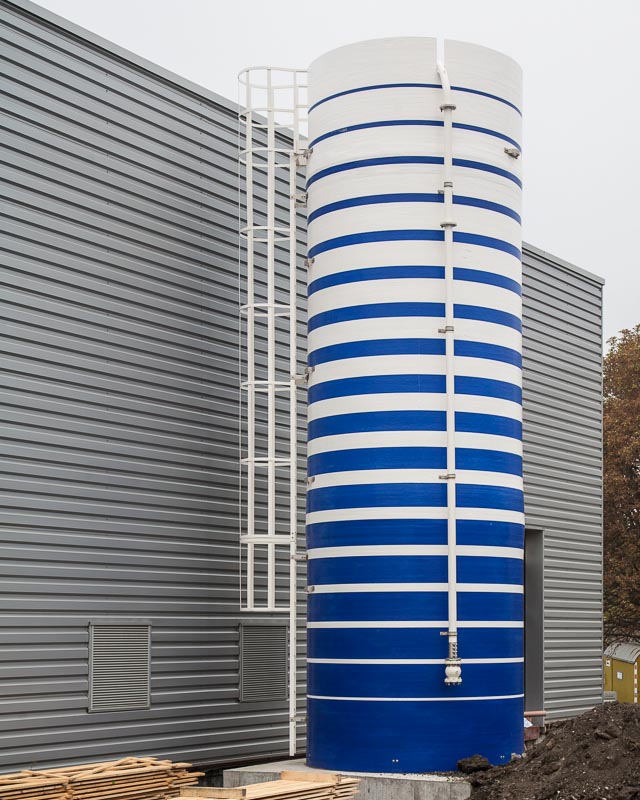

Water Storage Tanks

Above Ground Potable Water Storage

NTP FRP Water Tanks are built to AWWA Standards using NSF approved resins with UV inhibitors to ensure durability.

In addition to National Standards, NTP adheres to the following Standards:

  • ASTM D3299: Standard Specification for Filament-Wound Glass-FiberReinforced Thermostat Resin Corrosion-Resistant Tanks
  • ASTM D4097: Standard Specification for Contact-Molded Glass-FiberReinforced Thermoset Resin
  • ASTM C-581: Standard Practice for Determining Chemical Resistance of Thermosetting Resins used in Glass Fiber Reinforced Structures Intended for Liquid Service”
  • ASTM D-883: “Definition of Terms Relating to Plastics”
  • ASTM D-2563: “Recommended Practice for Classifying Visual Defects in Glass Reinforced Plastic Laminate Parts “
  • ASTM D-2583: “Test for Indentation Hardness of Rigid Plastics by Means of Barcol Impressor”
  • ASTM C582 Table 5: Classifying Visual Defects in Glass Reinforced Laminates and parts there from.

Standard Tank Diameter

  • 8’ diameter
  • 10’ diameter
  • 12’ diameter
  • 14’ diameter
  • 15’ 6”diameter





 Tank   Accessories

  • Baffles
  • Fiberglass manways
  • Fiberglass collars and extensions
  • Flanged nozzles
  • FRP risers for access openings
  • Watertight riser covers
  • Threaded full couplings
  • Hold down straps
  • Concrete deadmen and anchors
  • Tank ladders (Straight & Caged)
  • Top Circular Railing
  • Walkway Stairs
  • Hand Rails
  • Fill/Draw pipes
  • Pump platforms
  • Dry hydrants and strainers
  • Vent/level indicators
  • Fill assemblies
Water Storage Tanks

   The Benefits of Fiberglass

  • Fiberglass tanks have a long history of use in applications where watertight design integrity is critical, including extensive use in the storage of motor fuels. Leak-free performance is essential when it comes to fire protection water storage.
  • Installation steps and costs are minimized by the lightweight nature of fiberglass since expensive heavy-lifting equipment generally is not necessary. This also is an important consideration when tank installation sites are difficult to access.
  • Large capacity tanks, up to 60,000 gal. Sizes generally required in fire protection systems, are factory-manufactured products that provide superior quality control processes vs. fabricating a tank on site where it is subject to varying weather conditions and manufacturing controls.
  • A fiberglass tank can be designed for dual-purpose use, with a common example being fire protection standby as well as potable water. A fiberglass tank can be ordered with a National Sanitation Foundation listing for potable applications.

     Marking and Identification

  • Manufacturer
  • Serial number
  • Date of Manufacture
  • Nominal Diameter
  • Nominal Height
  • Nominal Capacity
  • Type of Resin Used in Manufacture
  • Maximum Operating Temperature
  • Design Pressure
  • Design Vacuum
  • Burial Depth
  • Type of Product

Fiberglass Storage Tanks
Wastewater Storage Tanks
Wastewater Standards

Above Ground Tank Sizes and Capacity (Gallons)

TANK DIMENSIONS CONFIGURATIONS TYPE SHIP FROM ACTUAL (GALLONS)
2,000 Gallon Tank 8'x5' Above/Below Ground Fiberglass Texas 1878
2,200 Gallon Tank 8'x6' Above/Below Ground Fiberglass Texas 2254
2,600 Gallon Tank 8'x7' Above/Below Ground Fiberglass Texas 2630
3,000 Gallon Tank 8'x8' , 10'x5' Above/Below Ground Fiberglass Texas 3006, 2935
3,300 Gallon Tank 8'x9' Above/Below Ground Fiberglass Texas 3382
3,500 Gallon Tank 10'x6' Above/Below Ground Fiberglass Texas 3523
3,700 Gallon Tank 8'x10' Above/Below Ground Fiberglass Texas 3757
4,000 Gallon Tank 8'x11' , 10'x7' Above/Below Ground Fiberglass Texas 4133, 4110
4,200 Gallon Tank 12'x5' Above/Below Ground Fiberglass Texas 4227
4,500 Gallon Tank 5261 8220 11837 16083 19729
15' 5636 8807 12683 17232 21138
16' 6012 9394 13528 18381 22547
17' 6388 9982 14374 19529 23956
18' 6764 10569 15219 20678 25366
19' 7140 11156 16065 21827 31003
20' 7515 11743 16910 22976 28184
21' 7891 12330 17756 24125 29593
22' 8267 12917 18601 25273 31003
23' 8643 13505 19447 26422 32412
24' 9019 14092 20292 27571 33821
25' 9394 14679 21138 28720 35230
26' 9770 15266 21984 29869 36640
27' 10146 15853 22829 31017 38049
28' 10522 16441 23675 32166 39458
29' 10898 17028 24520 33315 40867
30' 11273 17615 25366 34464 42276
